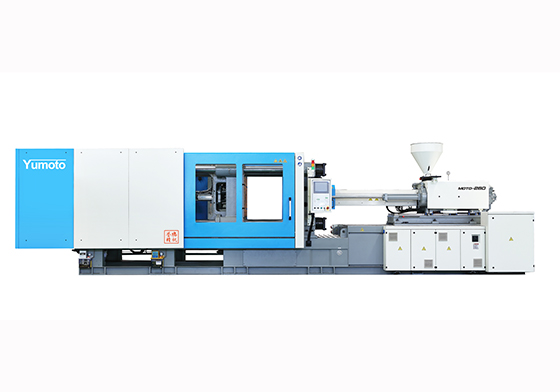

450 Ton Injection Molding Machine

- Clamping force (KN):4500

- Opening stroke(mm): 780

- Space between tie-bars(H×V)(mm):780*730

- Max.mold height(mm):750

- Min mold height (mm):320

Download PDF Contact Us

Applications:

Model No			MOTO-450
Description		Unit	2980
Injection Unit	Screw Diameter	mm	70	75	80
	Screw L/D Ratio	L/D	22.5	20	19.6
	Shot Size (Theoretical)	cm³	1443	1657	1885
	Shot Weight (Ps)	g	1313	1508	1715
	Injection Rate	g/s	290	333	379
	Injection Pressure	Mpa	206	179	158
	Screw Speed	r/min	0-140

Clamping Unit	Clamping Force	KN	4500
	Opening Stroke	mm	780
	Space Between Tie-bars(H×V)	mm	780*730
	Max.mold Height	mm	750
	Min Mold Height	mm	320
	Ejector Stroke	mm	200
	Ejector Force	KN	120

Others	Pump Motor Power	kw	40
	Heater Power	kw	36
	Machine Dimensions (LxWxH)	m	8.22.02.2
	Machine Weight	t	16.3
	Hopper Capacity	kg	50
