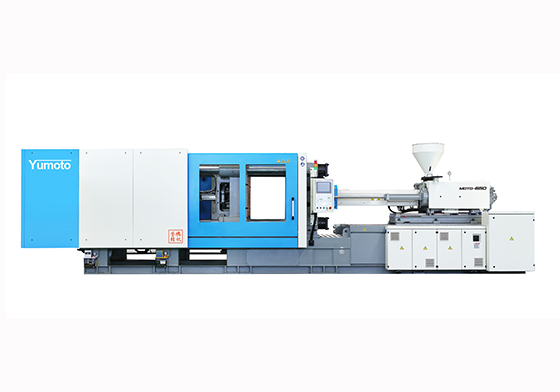

650 Ton Injection Molding Machine

- Clamping force (KN):6500

- Opening stroke(mm): 920

- Space between tie-bars(H×V)(mm):925*875

- Max.mold height(mm):950

- Min mold height (mm):380

Download PDF Contact Us

Applications:

Model No MOTO-650
Description Unit 5060
Injection Unit Screw Diameter mm 80 90 100 110
Screw L/D Ratio L/D 26.3 23.3 21 21
Shot Size (Theoretical) cm3 2262 2863 3534 4276
Shot Weight (Ps) g 2058 2605 3216 3891
Injection Rate g/s 390 493 609 737
Injection Pressure Mpa 224 177 143 118
Screw Speed r/min 0-134

Clamping Unit Clamping Force KN 6500
Opening Stroke mm 920
Space Between Tie-bars(H×V) mm 925*875
Max.mold Height mm 950
Min Mold Heigh mm 380
Ejector Stroke mm 280
Ejector Force KN 180

Others Pump Motor Power kw 36.5+36.5
Heater Power kw 42
Machine Dimensions (LxWxH) m 9.8*2.5*2.5
Machine Weight t 28
Hopper Capacity kg 100
